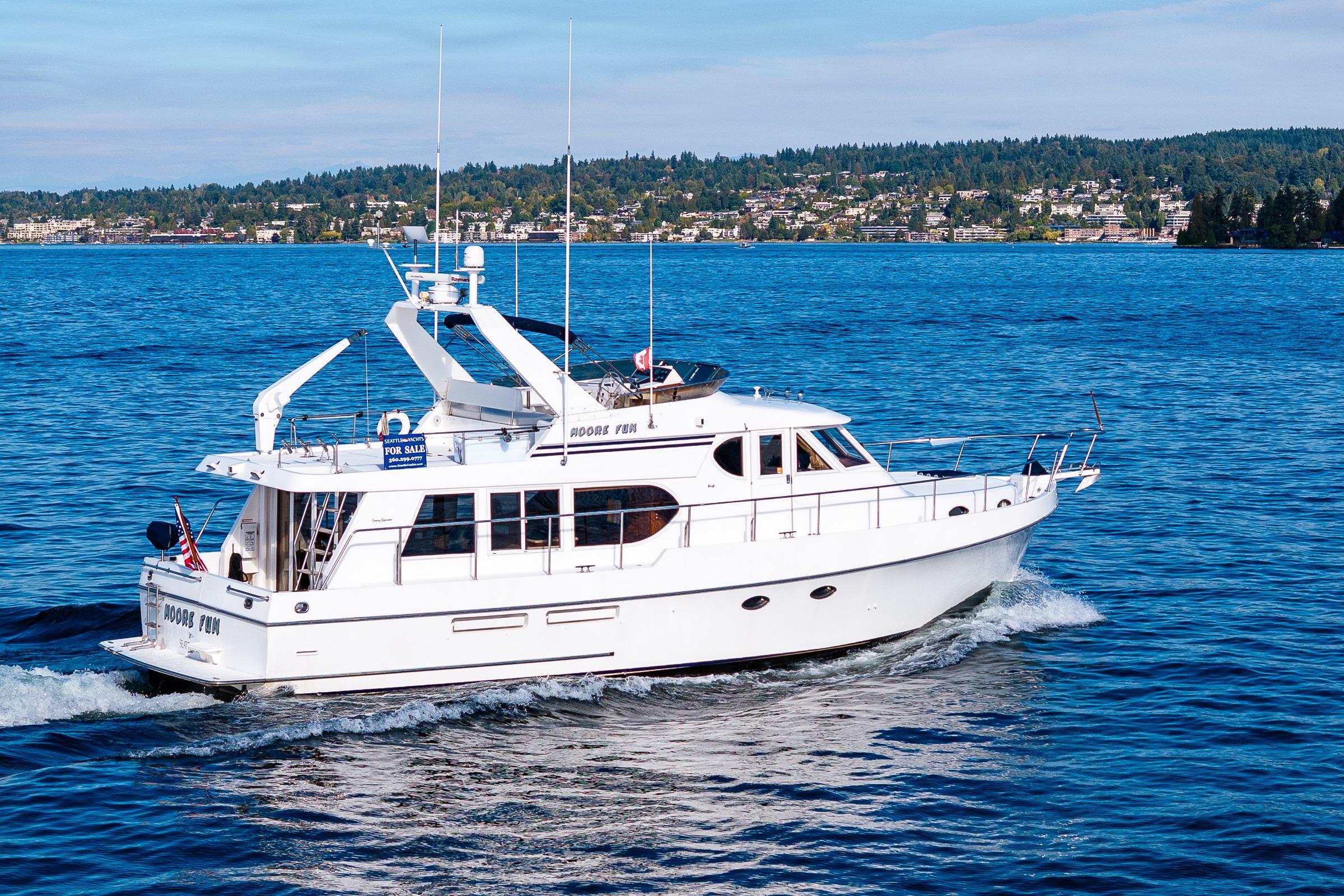

Ocean Alexander 70 E

Additional

General Construction Details:

• One piece molded hull and deck using vinylester resin with vacuum infusion, along with high density fiberglass mat and roving, marine grade structural foam for robust temperature resistivity and thermal as well as acoustic insulation.
• Reinforced collision bulkhead forward.
• All exterior surfaces are painted with professional grade Alexseal polyurethane paint along with epoxy based primers
• 2" elliptical 316L stainless steel handrails, stanchions, for better grip and safety of those aboard.
• Weather tight bulkheads for further sound and temperature insulation
• Longitudinal marine grade aluminum beams for greater rigidity.
• Bronze through-hull fittings
• The vessels bonding and grounding system includes copper straps secured to the hull and running full length of the vessel.  All machinery and systems equipment are connected to this bonding strap.
• Evan K. Marshall designed interior spaces with matching woods and designer fabrics
• Stained wood paneling and cabinetry
• European door handles and stainless hardware
• Satin varnish on interior woods
• Positive latch on cabinetry and drawers and cupboards
• Fabric (washable) covered walls
• Oversized hanging lockers in guest quarters
• Miele wash and dryer combo
• Air extraction system in the head compartments
• FB hardtop
• Windows all fixed with flush installation
• Electric Stainless sliding salon door with safety light curtain that senses obstruction.  Also included "foot-kick button" control for operation when hands are full
• Largest FB area in it's class with the Ocean Alexander "cab-fwd" design, the FB helm is moved fwd to allow for better visibility and lengthens the total FB are available for entertaining
• Nonskid decking throughout
• Varnished teak tables and seating at aft deck, bow area and (2 ea.) FB areas
• Boarding side deck doors on port & starboard side decks

Accommodations

Salon:

• Evan K. Marshall custom design salon furniture and sofa's, with concealed drawers for intelligent use of space and extra storage.
• Walnut wood paneling and cabinetry.
• Enlarged windows in the salon with custom engineered solution allowing for an industry leading window expanse, provides an unobstructed view to the outside.
• Drop down TV

Primary Cabin:

• Center King berth with upholstered headboard.
• Double night stands
• Port side chase lounge with vanity/computer desk
• Large double private heads with stall shower, w/Grohe fixtures.
• Safe in cedar lined walk-in hanging locker.
• Enlarged hull side windows with opening port lights for cross ventilation.
• Planus toilet system

VIP Cabin:

• Center island queen berth
• Storage in both drawers and hanging locker
• En-suite head with stall shower (Grohe fixtures)

Starboard Guest Cabin:

• Twin berths that will slide together.
• Access to en-suite head/day head (Grohe fixtures)

Port Side Guest Cabin:

• Stack berths
• Storage locker and drawers

PassageWay Laundry w/Miele stacked washer and dryer

Crew Cabin:

• single berth w/toilet and shower

Mechanical and Ships Systems

Main Engines:

• Twin Volvo IPS 1200 engines (950 hp each.) Located in the main engine room w/jack shafts back to the IPS pods for better overall balance of the vessel, as well as lesser bow rise while at planning speeds. (990 total engine hours)
• Electronic engine controls at PH and FB
• Joy Stick maneuvering controls at PH, FB at starboard side on the aft deck for docking.

Generator(s):

• 2 ea. Kohler 23 kW gen sets (610 hrs and 565 hrs)
• Centek style underwater quiet exhaust system
• Custom gen set mount system with resilient mounts and vibration dampers

Windlass and Mooring:

• RC12 24vdc electric windlass
• 88 lb SS anchor w/300' chain anchor rode
• Chain counter at helm
• Complete mooring pkg with lines, fenders, boat hook, etc.

Other:

• Volvo Penta Interceptor Electronic Vessel Control w/auto Trim Assist for fully automatic ride control
• SS safety rails in the engine room
• Automatic fire extinguishing system in engine room
• Adjustable Delta-T fan control system for engine room intake and exhaust, with de-mister to eliminate moisture and keep engine room dry
• Pantograph windshield wipers and washer w/intermittent function
• Kahlenberg HD air horn
• 2 ea. Stidd helm chairs on FB w/joy stick and Garmin controls in arm rest on main chair
• Stidd chair at LH w/joy stick and Garmin controls in arm rests
• Pantograph door on port side deck from PH
• Hydraulic swim step with 1500 lb capacity for dinghy.

Galley

The large and conveniently located galley offers a number of attributes from centrally located to also being a designed focal point of the main deck amenities.  Island with bar stools, great counter top spaces, central lighting, with ease of access to abundant storage areas and appliances.

• Drawers and cabinets all wood construction with fully dovetailed drawers, etc.
• Franke SS sink wth Grohe fixture
• Fisher-Paykel up right refrigerator
• 30" Jenn-Air microwave
• 30" Jenn-Air induction cook top
• 30" Jenn-Air convection oven
• Jenn-Air stacked additional refer/freezer drawers
• Whirlpool garbage disposal
• 30" Bosch dishwasher
• 15" Jenn-Air trash compactor
• Designed flatware, diner ware, glass ware and pots and pan spaces

Navigation and Electrical Systems

Electronics:

• Garmin 8600 Series Black Box with 2 ea. 24" screens at the lower helm and 2 ea. 24" screens at the FB helm
• Garmin GRID remote device located on the both PH and FB Stidd helm chair arms.
• Garmin 12 kW open array radar antenna
• Garmin autopilot GHP reactor
• Garmin card reader
• Garmin VHF radios, 1 ea. PH and FB
• Garmin AIS with NMEA GPS
• Garmin sonar module with transducer
• Garmin marine cameras (2 ea. in engine room and 1 ea. on after deck)
• KVH Trac Vision HD7 antenna with Direct TV receivers
• Ritchie compass 5"

AC/DC System:

• Optoplex NMEA 2000 network electric circuit breakers system, with operation screen for breakers and other ship systems functions, tankage gauges, generator and shore power switching, etc.
• 120 vac outlets
• AGM batteries with -15C to 40C operating temp and low 3% per month discharge rates
• Battery paralleling system between service and engines
• Service battery switch
• Engine battery isolation switches and paralleling
• GFCI outlets in potential "wet" areas.  Plus the entire boat is protected via ELCI Optoplex breakers
• Shore power receptacles at transom w/2 ea. 80' 50/240 vac shore power cords on Glenndenning cable master winders along with Iso-Boost transformers
• 60 amp house battery charger
• 30 amp engine battery charger
• 30 amp bow thruster battery charger
• Inverter system battery charger
• 24 vdc LED lighting throughout vessel

Air Conditioning:

• Dometic systems throughout, rated for "extreme tropical climates" with reverse cycle for heat, with heat operation down to 40 degree water temp.
• Refrigerant type is accepted worldwide under Montreal Protocols

Plumbing

Fresh Water System:

• Stainless steel water tank
• Fresh water wash down quick connect spigots on fore deck and stern
• Dockside water connection
• 28 gallon high efficiency water heater with high density fiberglass insulation

Bilge/Discharge:

• 24 vdc shower sump pumps
• Auto bilge pumps with high water alarms
• Lighted bilges
• Bilge ventilation system
• Common drainage system for bar sinks, showers, bilges and exterior decks

Fuel System:

• Aluminum fuel tank with sight gauges, along with high and low fuel alarms
• Fuel tank filler on both sides of the boat, so that fuel can be done without moving fuel hoses from one side to the other.
• Fuel cleaning system.

Vessel's Shipbuilder Options

• Walnut interior wood choice
• Dark stone package
• Cambria floor in heads
• Sliding starboard guest berths, which converts the cabin from two single berths to a single queen
• Seagull water purifier for galley and ice makers
• Heated floor in primary in-suite head
• Hydraulic "zero speed" stabilization
• Second 23 kW Kohler gen set
• Electric bow thruster
• Fusion audio/video systems
• On board intranet, driven by commercial-grade 4G SIM card capable Wi-Fi router
• Garmin monitors upgraded from 17" to 24"
• Inverter pkg
• 300' anchor chain rode
• Dockside water filtration to eliminate taste and odors from dockside water supply
• Sea Recovery 450 GPD water maker
• Teak decking on after deck, main side decks, transom step and the hydraulic swim step
• FB rear lounge seating with hi-low table, all converting to sun pad
• FB manual awning w/custom SS poles and marine grade mesh fabric, with pole storage
• Bow area manual awning w/custom SS poles and marine grade mesh fabric, with pole storage
• Aft deck custom cabinet with stone counter top, sink and beverage cooler/ice maker
• High output underwater LED lights
• FB custom flip down TV
• FB port side cabinet with beverage cooler and ice maker
• Complete weather cover package for all exterior seats and tables.
• 2 ea. bar stools for FB wet bar area and 24" Electric Chef BBQ
• 2018 14' Walker Bay RIB w/50 hp Yamaha ob
